EP-PBL/PBF Series High Precision Planetary Gearbox — ≤5 Arcmin Backlash, IP65 Sealed

The EP-PBL/PBF is Korea Ever-Power’s high precision planetary gearbox series, purpose-built for servo-driven applications where positional accuracy cannot be compromised. With backlash held to ≤5 arcmin at single-stage and ≤8 arcmin at two-stage, this precision planetary gearbox occupies the performance tier between the standard EP-PL/PF planetary reducer and the ultra-precision EP-HAB.

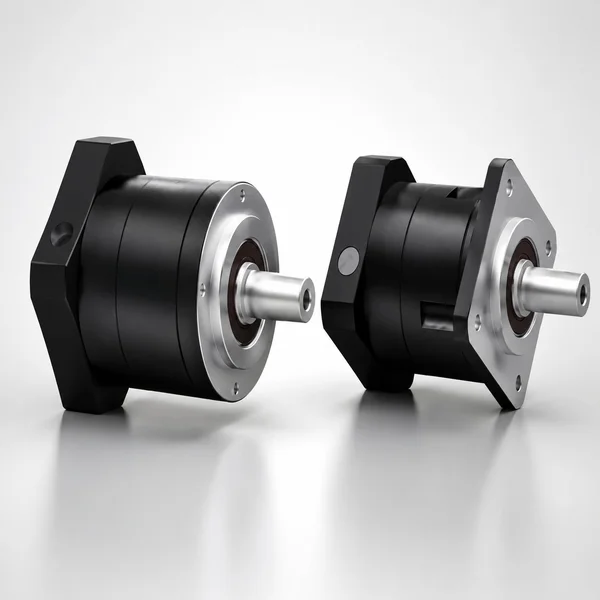

Every EP-PBL/PBF unit is sealed to IP65, protecting the planetary gearbox internal components against dust ingress and low-pressure water jets. This makes it suitable for environments that the IP54-rated standard series cannot serve — food processing washdown zones, dusty woodworking shops, and ISO-class cleanrooms where particle generation must be contained.

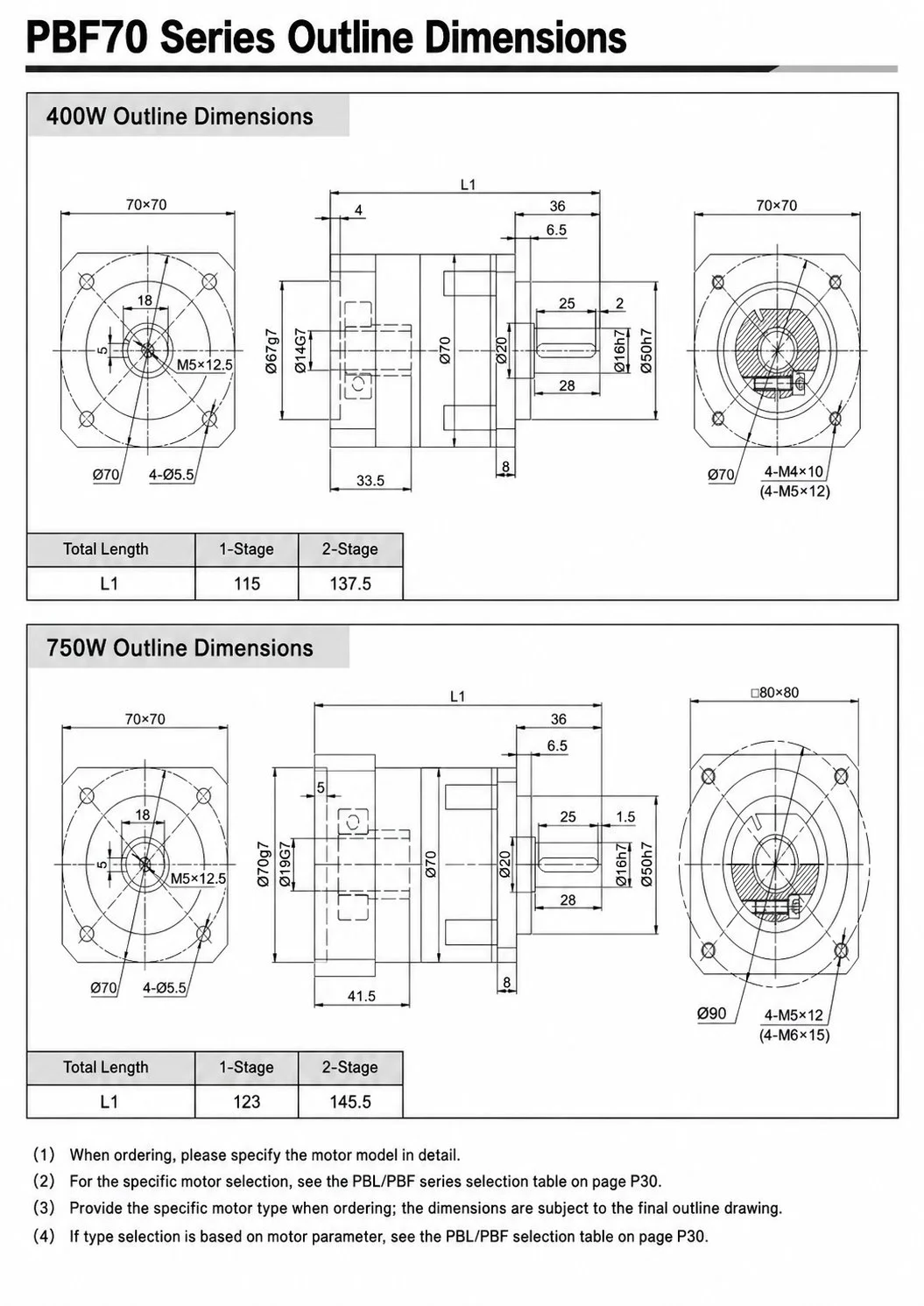

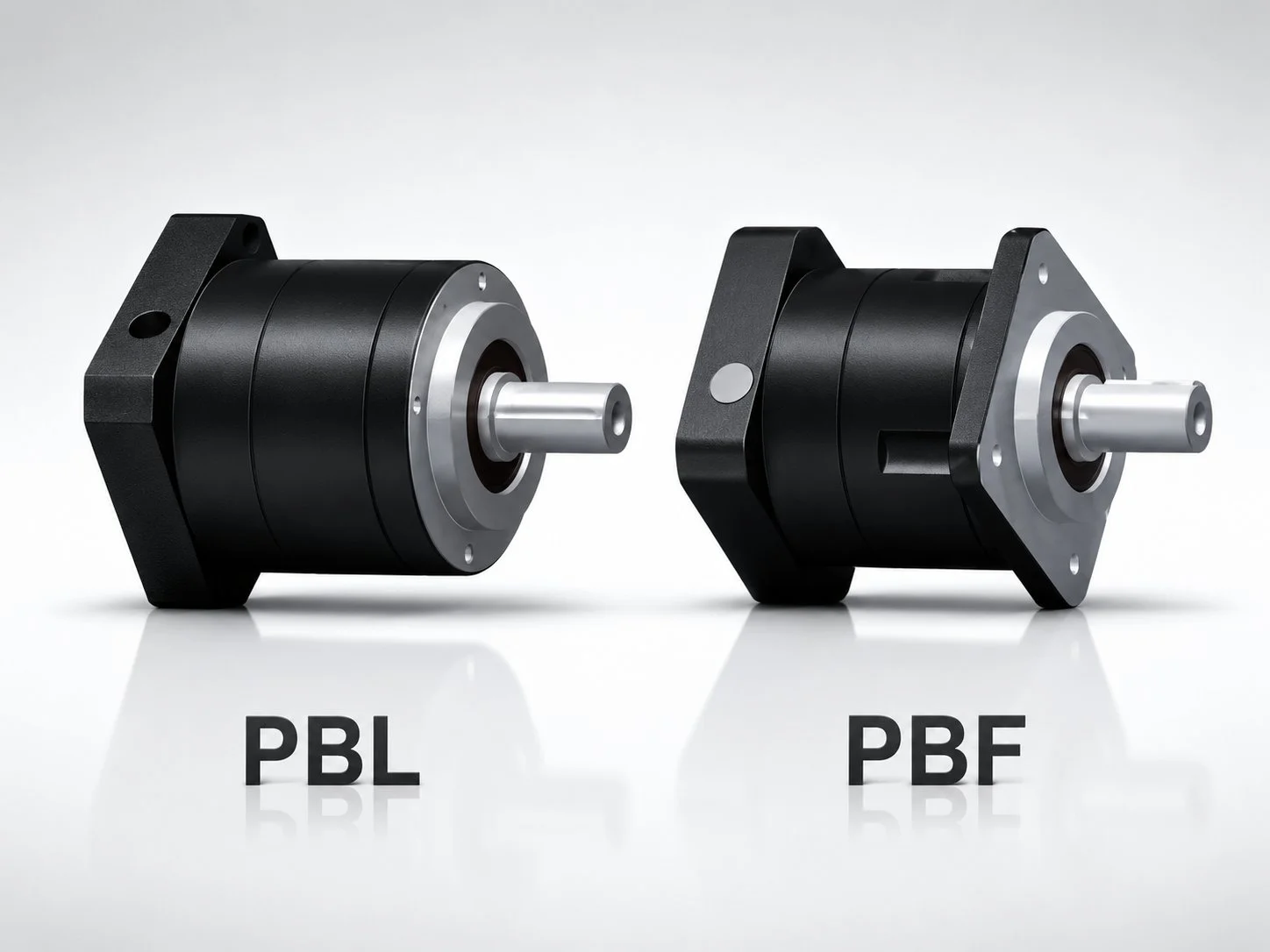

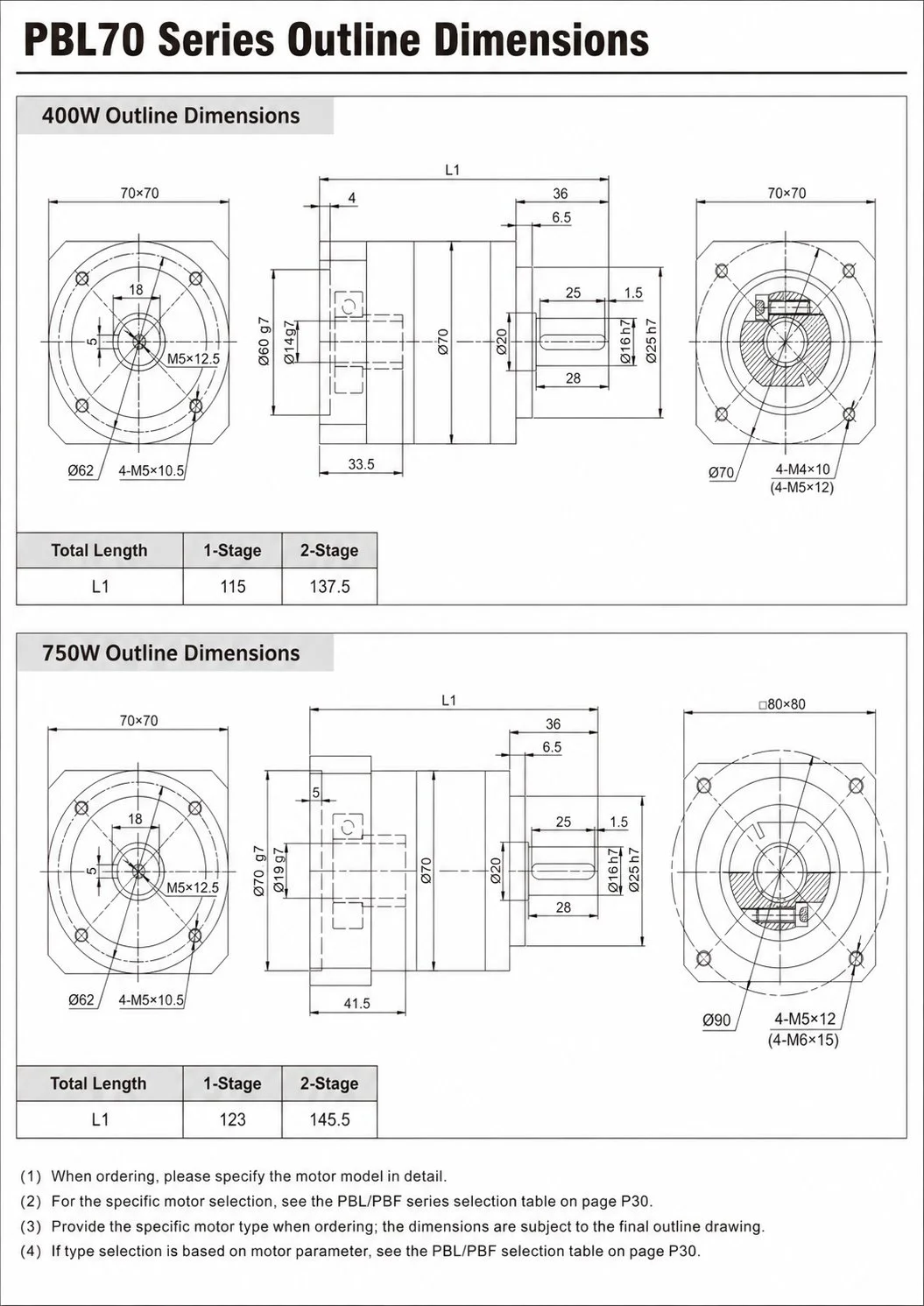

Three frame sizes — EP-PBL/PBF70, EP-PBL/PBF90, and EP-PBL/PBF120 — cover servo motor power from 50 W to 2,000 W. Only single-stage and two-stage configurations are offered; the high precision planetary reducer gear train maintains its accuracy advantage best at one or two reduction stages. Round flange (EP-PBL) and square flange (EP-PBF) output variants share identical internal precision.

Request a Quote →

The EP-PBL/PBF upgrades the sealing standard from IP54 (splash-proof) to IP65 (dust-tight and protected against low-pressure water jets from any direction). This planetary gearbox sealing upgrade opens application categories that the standard EP-PL/PF cannot serve:

◆ Semiconductor Wafer Handling

Wafer transfer robots and pre-aligners require sub-arcminute repeatability to position 300 mm wafers within ±0.1 mm on the chuck. At the arm radius involved, even 8 arcmin of backlash can exceed the allowable error budget. The EP-PBL70 at ≤5 arcmin keeps the reducer contribution below 0.15 mm at a 200 mm radius, leaving margin for servo tuning and mechanical compliance elsewhere in the kinematic chain.

◆ Laser Cutting & Welding Systems

Fibre laser cutting heads traverse at high speed with direction reversals at every corner. Backlash at reversal points creates visible dwell marks on the cut edge. The EP-PBF90 at ≤5 arcmin with 14 N.m/arcmin torsional stiffness minimises corner dwell in this precision planetary reducer and maintains beam positioning accuracy through velocity transitions.

◆ Medical Devices & Surgical Robotics

Surgical robotic arms, medical imaging gantries, and laboratory automation systems operate under strict accuracy validation protocols. The ≤5 arcmin backlash specification provides a repeatable, documentable precision grade that supports IQ/OQ/PQ validation requirements. IP65 sealing also meets the hygiene demands of clinical environments.

◆ Precision Dispensing & AOI Inspection

Adhesive dispensing, solder paste application, and automated optical inspection all rely on XY gantry systems where each axis must reverse direction without positional offset. Two EP-PBL/PBF units — one per axis — with matched backlash grades ensure that reversal errors remain within the process tolerance window.

◆ High-Speed Pick-and-Place

Surface-mount component placement machines operate theta-axis rotation at up to 600 rpm with position locking at every placement cycle. The combination of ≤5 arcmin backlash and high torsional stiffness in the EP-PBL70 allows the servo controller to achieve angular settling within 10 ms after each rotation stop, maintaining placement throughput above 30,000 CPH. Connect the output through a drive shaft when the pick head requires an articulating coupling to the nozzle assembly.

Achieving ≤5 arcmin backlash consistently across planetary gearbox production volumes requires precision at every manufacturing stage. At Korea Ever-Power, the EP-PBL/PBF production process includes:

1. 1
   Gear blanks from vacuum-degassed alloy steel — ensuring homogeneous metallurgical structure with no inclusions that could create localised hardness variations after carburising.
2. 2
   5-axis CNC gear hobbing and shaving — generating involute tooth profiles to DIN/JIS Class 5 or better accuracy. Profile and lead errors held below 5 μm per tooth.
3. 3
   Gas carburising to HRC 58–62 case depth — followed by controlled atmosphere tempering to relieve residual stress while maintaining surface hardness.
4. 4
   Post-hardening profile grinding — removing heat-treatment distortion and achieving final tooth surface finish below Ra 0.6 μm. This grinding step is what separates the PBL/PBF precision tier from the standard PL/PF series.
5. 5
   100% assembled-unit backlash verification — every finished EP-PBL/PBF gearbox is tested under load to confirm the backlash falls within the ≤5 arcmin (1-stage) or ≤8 arcmin (2-stage) specification. Test certificates accompany each unit on request.

The EP-PBL/PBF fits into a wider Korea Ever-Power precision drive ecosystem:

“We replaced a well-known German brand with EP-PBL90 on our fibre laser cutting head gantry. Corner quality improved visibly — the dwell marks at direction reversals are gone. Backlash measured 4.2 arcmin on incoming inspection, better than the stated ≤5 arcmin specification. Procurement cost was less than half the German unit.”

“The IP65 sealing was the deciding factor for us. Our previous IP54-rated gearboxes failed within 8 months in our dairy processing plant washdown environment. The EP-PBF120 units have been running for over a year now with zero ingress issues. Backlash remains stable at the original measured values.”

“We use EP-PBL70 on our wafer pre-aligner theta axis. Repeatability is within our ±0.05° requirement. The OP2 split coupling makes motor replacement fast during scheduled maintenance. Only minor feedback: the datasheet could include more detail on moment of inertia values for servo tuning calculations.”

“Specified EP-PBF90 for our new PCB AOI inspection gantry. Both X and Y axes need precise reversal with zero backlash hysteresis. At ≤5 arcmin, the reversal error at the camera focal point is below our 0.3 mm tolerance. Noise is remarkably low — important for our operators working alongside the machine all shift.”

“We build medical laboratory automation systems for the Southeast Asian market. The EP-PBL70 passed our 21 CFR Part 11 validation process without issues — the test certificate provided with each unit made documentation straightforward. Repeat positional accuracy has been verified at 0.02° over 5,000 cycles.”
